CUBE Switch Module PRO
Original price was: රු15,850.00.රු14,750.00Current price is: රු14,750.00.
CUBE Switch Module
Original price was: රු15,750.00.රු13,950.00Current price is: රු13,950.00.

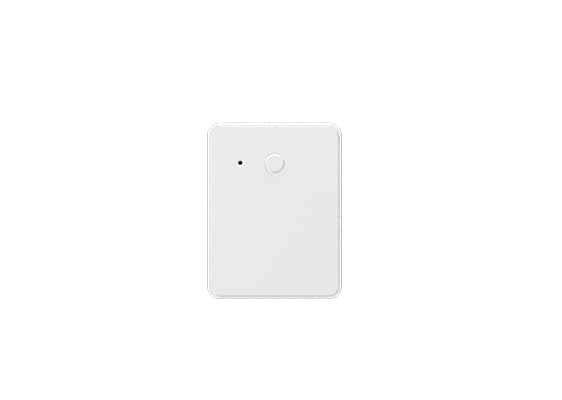

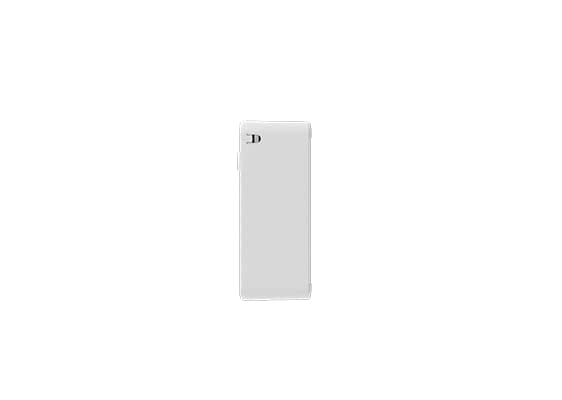

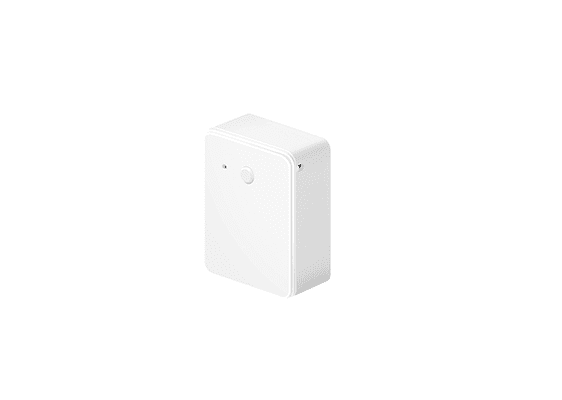

Make traditional switch into a smart one

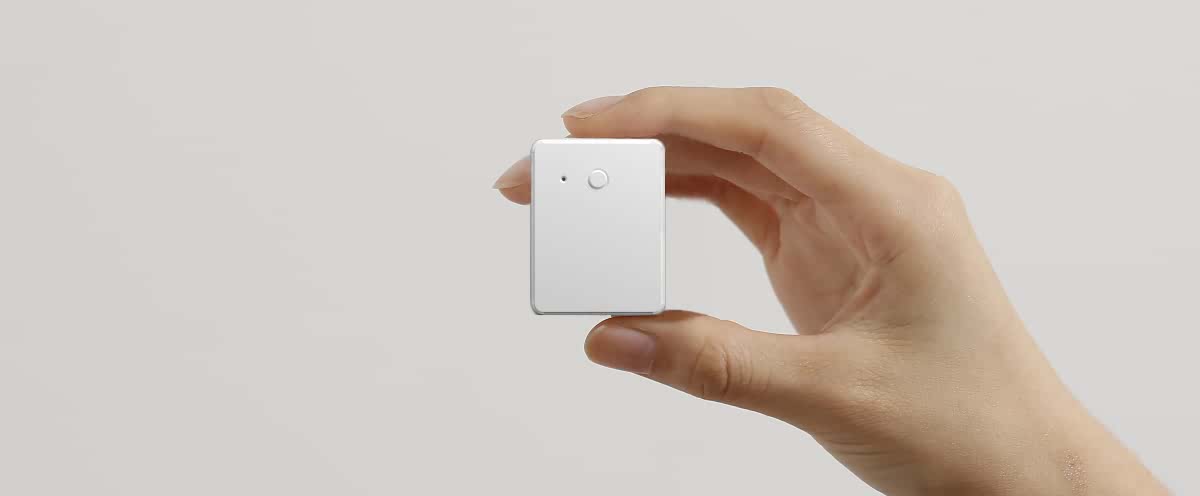

LifeSmart CUBE Switch Module is in extremely small size and very easy to install. It is suitable for 80, 86, 120 and many other panels of different specifications. It can easily upgrade traditional switches to intelligent ones.
Available on backorder
Description
FEATURES
- The most compact smart switch module ever
- Update a traditional switch to a smart one
- Strong compatibility to different switch size
SPECIFICATION
| Â General | |
| Model Number | LS176(1 way) /Â LS177(2 way) |
| Wiring | Live+neutral |
| Control Unit | 8A magnetic latching relay |
| Operating Temperature | -5~45°C |
| Operating Humidity | 5~90% |
| Power Supply | AC 100-240V 50/60Hz |
| Static Consumption | <0.3W |
| Maximum Overload | Resistive load: 300W per way
Inductive/Capacitive load: 150W Â per way |
| Indicator | LED |
| Button | Pairing button |
| Â Radio | |
| Radio Protocol | CoSS |
| Signal Range(Open Field) | 100m |
| Â Construction | |
| Color | Ivory white |
| Dimension | 42*32*16mm |
| Weight | 20g(1 way) / 25g(2 way) |
| Casing | Flame-resistant PC |
Additional information
| brand |
Lifesmart |
|---|
